[Landt Instruments 공식대리점 관련 업무대행/수입] Battery Test Models
Battery Test Systems for Energy Materials Research
Landt CT3002A/CT2001A/CT3001A Battery Test Systems are designed for energy storage materials research and various battery tests. Each tester has eight independent channels. They can be programmed to run automatic constant current charge and discharge tests and cycle life tests. With current/voltage custom-built (current ranges from 1 mA to 5 A, voltage ranges from 5V to 15V), the battery test systems can run precise battery charge/discharge tests in most cases of coin cell test/half cell test, pouch cell test, cylindrical cell test (18650 & 21700 cells).
The control software comes free with the battery test system. It has a friendly interface, which allows new users to operate with minimal training. Besides, data process software shows different kinds of plots for specified cycles (Voltage vs. Capacity, Capacity vs. Cycle Number, Efficiency, etc.), and the data can be easily exported by simply “Copy” and “Paste.”
Since Jan 2021, we have upgraded CT2001A/CT3001A with CT3002A models, which have a higher sampling rate (up to 10 pts/s), better reliability, and better accuracy at low current. The classic CT2001A has been discontinued.
Features
· High-precision battery test systems with 8 channels designed for electrochemical materials research and battery charge/discharge tests
· 8 independent channels with each can be set as Constant-Current (CC) Discharge, Constant-Current (CC) Charge, Constant-Voltage (CV) Charge, Cycling loops, etc.
· Single current range for CT3001A and double current ranges for CT3002A (1mA/10mA, 10mA/100mA, 2mA/20mA, 5mA/50mA, 100mA/1A, 500mA/5A, etc.)
· Independent current source and voltage control for every channel
· RS232/422 ports for efficient and reliable communications, very easy to set up
· LandtMon software for scheduling a test and monitoring the data
· Separate data process software, small but powerful
· Data automatically backed up on the hard drive or an external drive
· Full safety protections for all the channels
· Capable to control up to 20 battery test systems (160 Channels) with one computer
· Custom current/voltage ranges available up to request

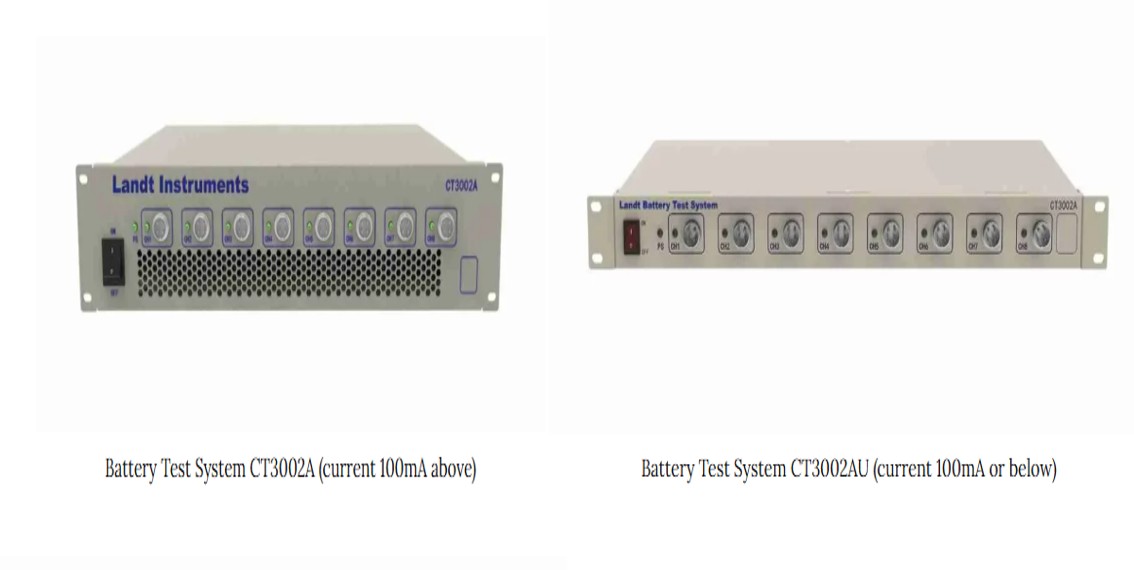

Typical CT3002 Battery Test Models
| Model | Current Ranges | Working Current | Working Voltage | Number of Channels |
|---|
| CT3002AU-5V10mA | 10mA/1mA | 2uA~10mA | -5V~+5V | 8 |
| CT3002AU-5V50mA | 50mA/5mA | 0.01mA~50mA | -5V~+5V | 8 |
| CT3002AU-5V100mA | 100mA/10mA | 0.02mA~100mA | -5V~+5V | 8 |
| CT3002A-5V200mA | 200mA/20mA | 0.04mA~200mA | -5V~5V | 8 |
| CT3002A-5V500mA | 500mA/50mA | 0.1mA~500mA | -5V~5V | 8 |
| CT3002A-5V1A | 1A/100mA | 0.2mA~1A | -5V~5V | 8 |
| CT3002K-5V5A | 5A/500mA | 1mA~5A | -5V~5V | 8 |
| CT3002K-5V6A | 6A/600mA | 1.2mA~6A | -5V~5V | 8 |
| CT3002K-5V10A | 10A/1A | 2mA~10A | 0V~5V[1] | 8 |
| CT3002N-5V20A | 20A/2A | 4mA~20A | 0V~5V[1] | 8 |
